Features:

Color to black infrared sync function, lower noise at night;

Clear picture quality, better color reproduction, low illumination;

Low power consumption, wide voltage power supply design, the voltage range DC9-18V

Parameters:

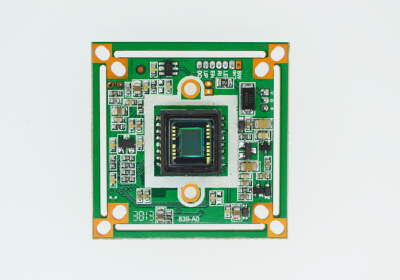

Imaging Device 1/3 "SONY CCD

Effective Pixels PAL: 976H × 582V NTSC: 976H × 494V

System standard PAL / NTSC

Horizontal Resolution 700TVL

SNR> 50db

Minimum illumination 0.01LUX

Backlight Compensation (BLC) Auto / AUTO

Auto Electronic Shutter (AES) AUTO / 1/50 (1/60) -1 / 100,000sec

Auto White Balance (AWB) AUTO

Synchronization Internal way

Video output CVBS / 1.0Vp-p / 75Ω

Operating voltage DC12V / 75mA

Working environment -20 ℃ --- 50 ℃
